齒排

Racks
Brass Racks
Stainless Steel Racks

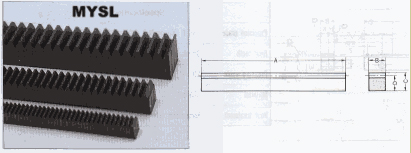

Racks

詳細內容

Module 1~10 Type F

Catalog No.
Module
Total
length
Face
width
Height
Height to
pitch line
Effective
No. of teeth
Allowable
force (kgf)
Allowable
force (N)
Weight
(kgf)
m
A
B
C
D
Bending
strength
Surface
durability
Bending
strength
Surface
durability
MYSL1-1000
MYSL1.5-1000
MYSL2-1000
MYSL2.5-1000
MYSL3-1000
MYSL4-1000
MYSL5-1000
MYSL6-1000
MYSL8-1000
MYSL10-1000
1
1.5
2
2.5
3
4
5
6
8
10
999.03
999.03
1005.31
1005.31
999.03
1005.31
1005.31
999.03
1005.31
1005.31
10
15
20
25
30
40
50
60
75
90
12
20
25
30
35
45
50
60
75
80
11
18.5
23
27.5
32
41
45
54
67
70
318
212
160
128
106
80
64
53
40
32
97.71
219.9
390.9
610
879.4
1563
2443
3518
4510
6765
18.02
42.92
79.03
126.6
185.7
339.1
540
788.8
1059
1642
958.2
2165
3833
5989
8624
15330
23960
34500
44230
66340
176.7
420.9
775
1242
1821
3325
5296
7735
10380
16100
0.8
2.2
3.6
5.3
7.5
12.5
17.5
25.4
39
50
MYSL1.5-1500
MYSL2-1500
MYSL2.5-1500
MYSL3-1500
MYSL4-1500
MYSL5-1500
1.5
2
2.5
3
4
5
1507.96
1507.96
1507.96
1507.96
1507.96
1507.96
15
20
25
30
40
50
20
25
30
35
45
50
18.5
23
27.5
32
41
45
320
240
192
160
120
96
219.9
390.9
610
879.4
1563
2443
42.92
79.03
126.6
185.7
339.1
540
2165
3833
5989
8624
15330
23960
420.9
775
1242
1821
3325
5296
3.3
5.5
8.2
11.4
19.4
26.6
MYSL1.5-2000
MYSL2-2000
MYSL2.5-2000
MYSL3-2000
MYSL4-2000
1.5
2
2.5
3
4
2049.88
2049.88
2049.88
2049.88
2049.88
15
20
25
30
40
20
25
30
35
45
18.5
23
27.5
32
41
435
326
261
217
163
219.9
390.9
610
879.4
1563
42.92
79.03
126.6
185.7
339.1
2165
3833
5989
8624
15330
420.9
775
1242
1821
3325
4.5
7.4
11
15.4
26.4

MATEL : S45C

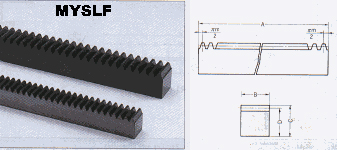

Module 1.5~5 Type F, Normalized

Catalog No.
Module
Total
length
Face
width
Height
Height to
pitch line
Effective
No. of teeth
Allowable
force (kgf)
Allowable
force (N)
Weight
(kgf)
m
A
B
C
D
Bending
strength
Surface
durability
Bending
strength
Surface
durability
MYSL1.5-1000
MYSL2-1000
MYSL2.5-1000
MYSL3-1000
MYSL4-1000
MYSL5-1000
1.5
2
2.5
3
4
5
999.03
1005.31
1005.31
999.03
1005.31
1005.31
15
20
25
30
40
50
20
25
30
35
45
50
18.5
23
27.5
32
41
45
212
160
128
106
80
64
351.8
625.4
977.1
1407
2502
3909
97.18
179
286.6
420.5
767.9
1223
3450
6133
9582
13800
24540
38330
953
1755
2811
4124
7530
11990
2.2
3.6
5.4
7.5
12.9
17.8

MATEL : SCM440

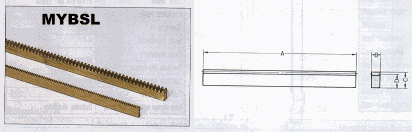

Brass Racks

詳細內容

Module 0.2~1.25

Catalog No.
Module
Total
length
Face
width
Height
Height to
pitch line
Effective
No. of teeth
Allowable
force (kgf)
Allowable
force (N)
Weight
(kgf)
m
A
B
C
D
Bending
strength
Surface
durability
Bending
strength
Surface
durability
MYBSL0.5-300
MYBSL0.8-300
MYBSL1-300
MYBSL1.25-300
0.5
0.8
1
1.25
303
303
303
303
3
4
6
8
9
10
10
10
8.5
9.2
9
8.75
192
120
96
77
2.931
6.254
11.73
19.54
-
-
-
-
28.74
61.33
115
191.6
-
-
-
-
0.06
0.09
0.13
0.16

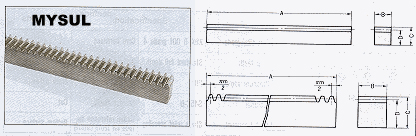

Stainless Steel Racks

詳細內容

Module 1~3

Catalog No.
Module
Total
length
Face
width
Height
Height to
pitch line
Effective
No. of teeth
Allowable
force (kgf)
Allowable
force (N)
Weight
(kgf)
m
A
B
C
D
Bending
strength
Surface
durability
Bending
strength
Surface
durability
MYSUL1-500
MYSUL1.5-500
MYSUL2-500
MYSUL2.5-500
MYSUL3-500
1
1.5
2
2.5
3
505
505
505
505
505
10
15
20
25
30
12
20
25
30
35
11
18.5
23
27.5
32
160
107
80
64
53
46.64
104.9
186.5
291.5
419.7
10.14
24.15
44.46
72.21
104.5
457.4
1029
1829
2859
4116
99.44
236.8
436
698.3
1025
0.42
1.2
1.8
2.7
3.8
MYSL1.5-1000
MYSL2-1000
MYSL2.5-1000
MYSL3-1000
1.5
2
2.5
3
1010
1010
1010
1010
15
20
25
30
20
25
30
35
18.5
23
27.5
32
214
160
128
107
104.9
186.5
291.5
419.7
24.15
44.46
71.21
104.5
1029
1829
2859
4116
236.8
436
698.3
1025
2.2
3.6
5.3
7.6

Module 1.5~3 Type F

Catalog No.
Module
Total
length
Face
width
Height
Height to
pitch line
Effective
No. of teeth
Allowable
force (kgf)
Allowable
force (N)
Weight
(kgf)
m
A
B
C
D
Bending
strength
Surface
durability
Bending
strength
Surface
durability
MYSL1.5-1000
MYSL2-1000
MYSL2.5-1000
MYSL3-1000
1.5
2
2.5
3
999.03
1005.31
1005.31
999.03
15
20
25
30
20
25
30
35
18.5
23
27.5
32
212
160
128
106
104.9
186.5
291.5
419.7
24.15
44.46
71.21
104.5
1029
1829
2859
4116
236.8
436
698.3
1025
2.2
3.6
5.3
7.6
